Model Predictive Control Demo#

Model predictive control (MPC) is an advanced method of process control that is used to control a process while satisfying a set of constraints. Model predictive controllers rely on dynamic models of the process, most often linear empirical models obtained by system identification. The main advantage of MPC is the fact that it allows the current timeslot to be optimized, while keeping future timeslots in account. Also MPC has the ability to anticipate future events and can take control actions accordingly. These features can benefit current model-based robotics control in Perception-Action frequency gap, unsmoothness of generated trajectories, and potential collision.

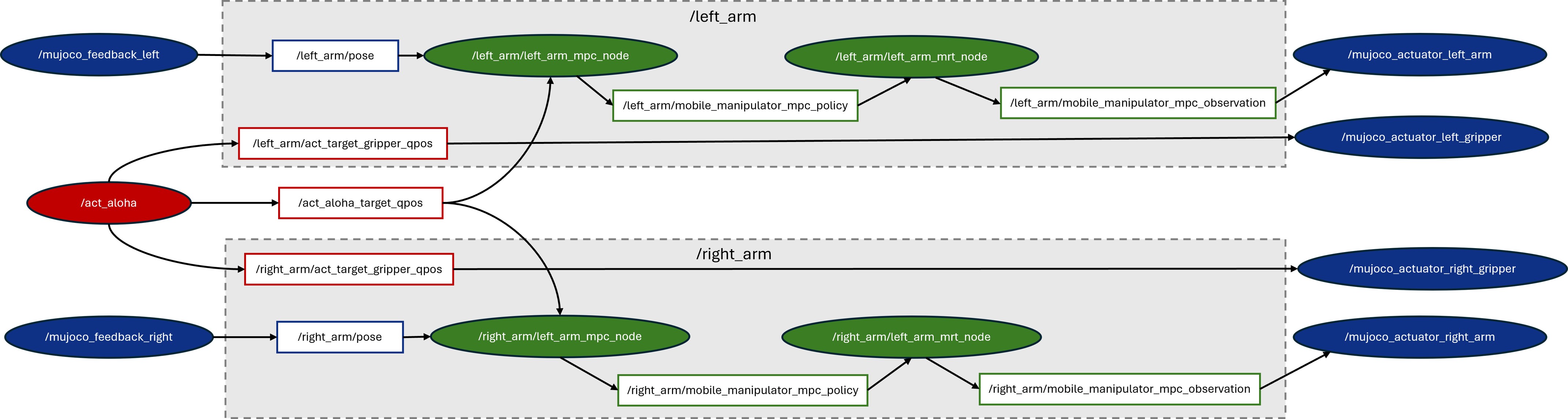

Here, we adopted an open-source MPC project named Optimal Control for Switched Systems (OCS2) and built a complete pipeline consisting of AI reference model(ACT), MPC(OCS2), and simulation(MUJOCO). The picture below shows the ROS node/topic graph of this demo with three modules: ACT AI model module (marked as red), OCS2 MPC optimization module (marked as green), and Mujoco simulation module (marked as blue).

MPC ROS graph

Updates#

  • Sep, 2026: Added a ROS-free (non-ROS) MPC module. Compared with the original ROS version, the non-ROS module (Non-ROS MPC Module) drives the MPC/MRT control loop over the ECI shared-memory transport with a cumulative-tick scheduler, so it emits control signals at the configured target frequency far more stably.

Prerequisites#

Please make sure you have finished setup steps in Get Started.

ROS2 Jazzy Setup#

Please refer to the official ROS2 Jazzy installation. The target platform for this release is Ubuntu 24.04.

Note

This release is maintained for ROS2 Jazzy only. If you need ROS2 Humble, please switch to the 2026.1 release.

ACT Setup#

First, please follow the ACT installation guide in Imitation Learning - ACT except Install ACT package. Here, we need to install ACT source code by downloading act-sample, and initialize submodules and apply patches:

cd act-sample

# initialize submodules
git submodule init
git submodule update

# apply all patches
git apply ../patches/ov/0001-enable-openvino-inference-for-eval.patch
git apply ../patches/ov/0002-add-model-conversion-script.patch
git apply ../patches/ov/0003-changes-for-real-robot.patch
git apply ../patches/ov/0004-Modify-the-camera-mode-to-fixed.patch
git apply ../patches/ov/0005-Modify-the-default-cameras-config.patch
git apply ../patches/ov/0006-add-ros2-node-and-use-fixed-cube-pose.patch

OCS2 Setup#

Here, we adopted and modified the open-source project OCS2 as the MPC module. OCS2 is a C++ toolbox tailored for Optimal Control for Switched Systems (OCS2). It provides an efficient implementation of Continuous-time domain constrained DDP (SLQ) and many other helpful algorithms. To facilitate the application of OCS2 in robotic tasks, it provides the user with additional tools to set up the system dynamics (such as kinematic or dynamic models) and cost/constraints (such as self-collision avoidance and end-effector tracking) from a URDF model. You can go to OCS2 official web for more details.

The upstream OCS2 project already provides a ROS2 baseline, so the following two patches are provided to enable it on ACT Aloha:

Patch num

Enhancement

001

Add dual-arm ALOHA mobile manipulator for ACT+OCS2+MUJOCO

002

Add non-ROS MPC (MPC-MRT) module and test pipeline

Install OCS2#

  1. Install dependencies:

    # install basic libraries
sudo apt update
sudo apt-get install -y \
  build-essential cmake git \
  python3-colcon-common-extensions python3-rosdep \
  python3-dev pybind11-dev \
  libeigen3-dev libboost-all-dev libglpk-dev \
  libgmp-dev libmpfr-dev libcgal-dev libopencv-dev libpcl-dev \
  liburdfdom-dev \
  libglfw3 libglfw3-dev libosmesa6 freeglut3-dev mesa-common-dev \
  python3-pip python3-wstool wget

# install ROS 2 Jazzy libraries
sudo apt-get install -y \
  ros-jazzy-eigen3-cmake-module \
  ros-jazzy-hpp-fcl \
  ros-jazzy-grid-map \
  ros-jazzy-xacro \
  ros-jazzy-robot-state-publisher \
  ros-jazzy-joint-state-publisher \
  ros-jazzy-rviz2

    On Jazzy, rosdep resolves pinocchio to ros-jazzy-pinocchio, which is not released. Install Pinocchio (and coal) from OpenRobots robotpkg instead:

    sudo apt install -y curl ca-certificates gnupg lsb-release
sudo install -d -m 0755 /etc/apt/keyrings
curl -fsSL http://robotpkg.openrobots.org/packages/debian/robotpkg.asc | sudo tee /etc/apt/keyrings/robotpkg.asc >/dev/null
echo "deb [arch=amd64 signed-by=/etc/apt/keyrings/robotpkg.asc] http://robotpkg.openrobots.org/packages/debian/pub $(. /etc/os-release && echo $VERSION_CODENAME) robotpkg" | sudo tee /etc/apt/sources.list.d/robotpkg.list >/dev/null
sudo apt update
sudo apt install -y robotpkg-pinocchio robotpkg-coal

    Make sure CMake and the dynamic loader can find the robotpkg installs (add these to your shell rc to persist across terminals):

    export CMAKE_PREFIX_PATH=/opt/openrobots:${CMAKE_PREFIX_PATH}
export LD_LIBRARY_PATH=/opt/openrobots/lib:${LD_LIBRARY_PATH}

  2. Create workspace for ocs2 and ocs2_robotic_assets:

    source /opt/ros/jazzy/setup.bash
mkdir -p ~/ocs2_ws/src
cd ~/ocs2_ws/src

  3. Download ocs2 and ocs2_robotic_assets

    Download ocs2 and ocs2_robotic_assets with git clone --recursive. Then, initialize submodules and apply patches:

    cd ~/ocs2_ws/src/ocs2
./install_ocs2_patches.sh patches/ocs2.scc

    cd ~/ocs2_ws/src/ocs2_robotic_assets
./install_ocs2_robotic_assets_patches.sh patches/ocs2_robotic_assets.scc

  4. Build ocs2 and ocs2_robotic_assets:

    cd ~/ocs2_ws
# rosdep
rosdep update --rosdistro jazzy
rosdep install --from-paths src --ignore-src -r -y --skip-keys pinocchio

# build
source /opt/ros/jazzy/setup.bash
colcon build --packages-skip mujoco_ros_utils --cmake-args -DCMAKE_BUILD_TYPE=Release

MUJOCO Setup#

Here, we adopted and modified the open-source Mujoco Plugin project MujocoRosUtils to visualize and simulate the ACT cube transmitting task in Mujoco 2.3.7. Installation is as follows:

  1. Download Mujoco 2.3.7 library:

    wget https://github.com/deepmind/mujoco/releases/download/2.3.7/mujoco-2.3.7-linux-x86_64.tar.gz
mkdir ~/.mujoco
tar -zxvf mujoco-2.3.7-linux-x86_64.tar.gz -C ~/.mujoco/
rm -fr mujoco-2.3.7-linux-x86_64.tar.gz

  2. Download MujocoRosUtils:

    Download mujoco_ros_utils with git clone --recursive. Then, initialize submodules and apply patches:

    cd ~/ocs2_ws/src/mujoco_ros_utils
./install_mujoco_ros_utils_patches.sh patches/mujoco_ros_utils.scc

  3. Build MujocoRosUtils:

    source /opt/ros/jazzy/setup.bash
source ~/ocs2_ws/install/setup.bash
cd ~/ocs2_ws
colcon build --packages-select mujoco_ros_utils --cmake-args -DCMAKE_BUILD_TYPE=RelWithDebInfo -DMUJOCO_ROOT_DIR=$HOME/.mujoco/mujoco-2.3.7

Run pipeline#

  1. Open new terminal and run Mujoco:

    source /opt/ros/jazzy/setup.bash
source ~/ocs2_ws/install/setup.bash
cd ~/.mujoco/mujoco-2.3.7/bin
./simulate [path to your MujocoRosUtils]/xml/bimanual_viperx_transfer_cube_dual_arm.xml

    Note

    If running successfully, the mujoco UI will display two opposing ALOHA robotic arms. Collision in this stage is acceptable.

    Note

    If mujoco fails with unknown plugin, please check ldd and add lib path manually:

    # ldd check
ldd ~/.mujoco/mujoco-2.3.7/bin/mujoco_plugin/libMujocoRosUtils*.so
# add path
export LD_LIBRARY_PATH=~/ocs2_ws/install/ocs2_msgs/lib:$LD_LIBRARY_PATH
export LD_LIBRARY_PATH=~/.mujoco/mujoco-2.3.7/bin/mujoco_plugin:$LD_LIBRARY_PATH

  2. Open new terminal and run OCS2:

    source /opt/ros/jazzy/setup.bash
source ~/ocs2_ws/install/setup.bash
ros2 launch ocs2_mobile_manipulator_ros manipulator_aloha_dual_arm.launch.py

    If launching successfully, the OCS2 terminal will print out information indicating that two MPC nodes have been successfully reset, and the Mujoco AI will be initialized, as shown in the figures below.

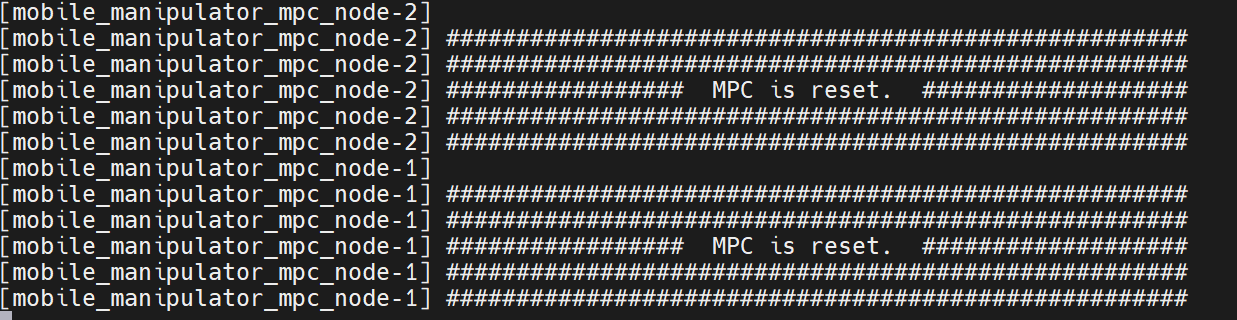

    MPC OCS2 node output

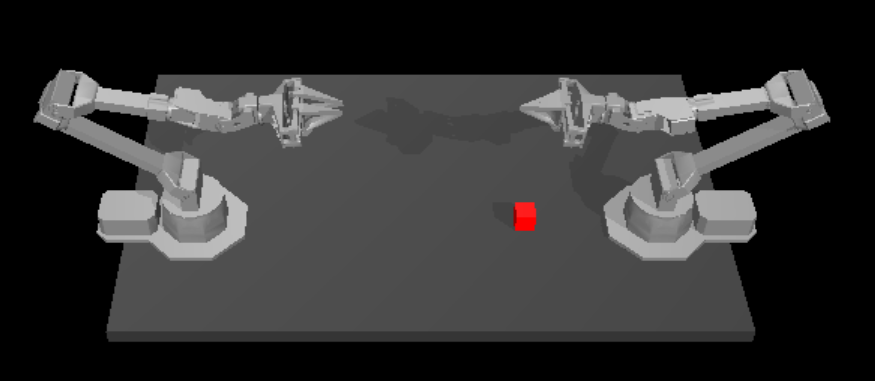

    MPC Mujoco initialization

  3. Open new terminal and run Act:

    Note

    You need to download our pre-trained ACT weights for transferring cube task and set the argument --ckpt_dir to the path of the pre-trained weights.

    # env
source /opt/ros/jazzy/setup.bash
source ~/ocs2_ws/install/setup.bash
source [path to your act venv]/bin/activate

# run act-ov on GPU
cd [your path to act]
MUJOCO_GL=egl python3 imitate_episodes.py --task_name sim_transfer_cube_scripted --ckpt_dir [your path to checkpoints] --policy_class ACT --kl_weight 10 --chunk_size 100 --hidden_dim 512 --batch_size 8 --dim_feedforward 3200 --num_epochs 2000  --lr 1e-5 --seed 0 --eval --onscreen_render --device GPU

    After ACT running successfully, the Mujoco UI appears as follows:

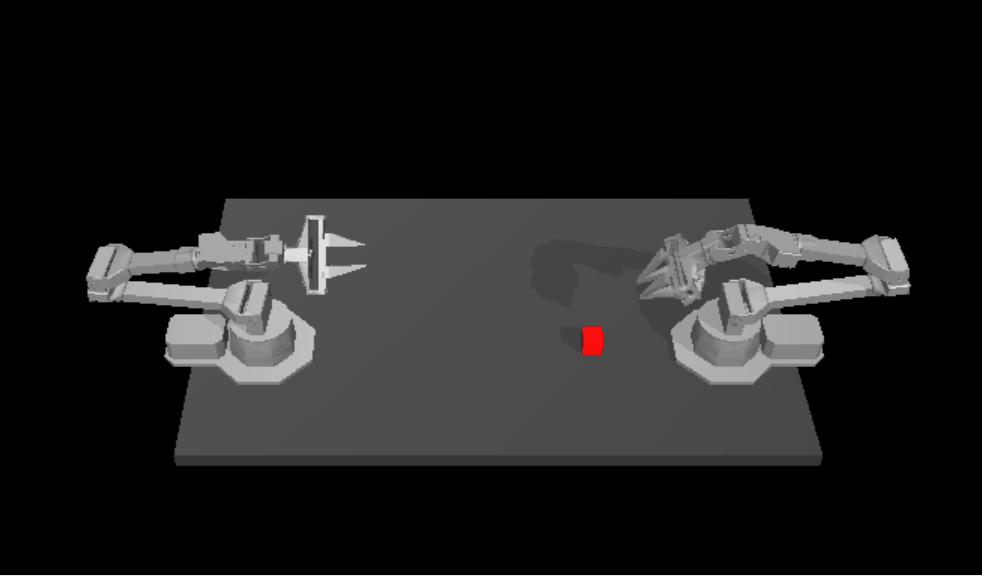

    MPC sim transmit cube demo

Non-ROS MPC Module (optional)#

Patch 002 adds ocs2_mobile_manipulator_nonros, a ROS-free variant of the dual-arm ALOHA demo. Instead of ROS topics, the MPC/MRT nodes, the MuJoCo viewer and the test publisher exchange data over the ECI shared-memory transport: the nodes publish each arm’s joint state, the publisher supplies gripper targets, and the viewer renders them. This lets you run and profile the MPC pipeline without a ROS graph.

Dependencies#

# MuJoCo and hardened XML parsing for Python
pip install mujoco==3.10.0 "defusedxml>=0.7.1"

# shared-memory transport (libshmringbuf.so must be on LD_LIBRARY_PATH,
# e.g. /usr/lib/x86_64-linux-gnu)
sudo apt install -y libshmringbuf-dev plcopen-databus-dev

Build#

source /opt/ros/jazzy/setup.bash
cd ~/ocs2_ws
colcon build --packages-select ocs2_mobile_manipulator_nonros
source install/setup.bash

Run#

The three helpers live under the patched OCS2 source tree. In the mpc-demo layout the submodule is nested one level deep, so set a helper variable once:

export OCS2_SRC=~/ocs2_ws/src/ocs2/ocs2/ocs2_robotic_examples/ocs2_mobile_manipulator_nonros

Startup order does not matter — each shared-memory block is opened lazily, so the viewer can start before the nodes.

  1. Launch both MPC/MRT arm nodes:

    cd "$OCS2_SRC/scripts"
./run_aloha_dual_arm.sh

    Resources are auto-discovered via AMENT_PREFIX_PATH; override with NODE_BIN / TASK_FILE / URDF_FILE / LIB_FOLDER.

  2. Start the MuJoCo viewer (one window shows both vx300s arms and the tabletop box, with full physics so the grippers can grasp and lift the box):

    cd "$OCS2_SRC/scripts"
python3 mujoco_viewer.py "$OCS2_SRC/aloha_dual_arm_viewer.xml"

    Arm-joint prefixes default to vx300s_left / vx300s_right (override with --left-prefix / --right-prefix); adjust refresh rate with --rate.

  3. Stream an ACT target trajectory (14 values: both arms + both grippers) to the nodes and viewer:

    TRAJ="$OCS2_SRC/test/target_trajectories_with_grippers.txt"
BIN=~/ocs2_ws/install/ocs2_mobile_manipulator_nonros/lib/ocs2_mobile_manipulator_nonros/aloha_act_publisher
"$BIN" --traj "$TRAJ"          # play once
"$BIN" --traj "$TRAJ" --loop   # loop forever

    The trajectory path must be absolute — otherwise the publisher falls back to a single static pose. Confirm loading with the log line [act_publisher] playing ... trajectory points. With --loop, the viewer resets the box to its keyframe pose at the start of each pass. Other options: --seconds N static run duration, --left / --right arm prefixes, and positional numbers or --qpos to force a single static target.

Note

The shared-memory transport currently unlinks its segment on close without distinguishing creator from opener, so restarting individual processes mid-session may misbehave. Restart the whole set if you hit shared-memory errors.
